Left tabPlasma CuttersRight tab

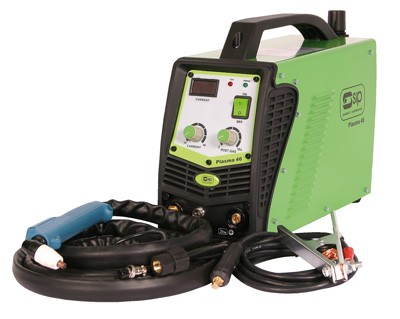

SIP 05175 - Plasma 46 SIP 05175 - Plasma 46 Ref: 05175
230v (16 amp) Supply
10-40 amps of cutting power - capable of cutting up to 10mm (mild steel), severs 12mm
40amps @60% duty cycle
Powerful and reliable proving fast, clean and precise cuts on mild and stainless steels, aluminium, brass and copper
Digital display showing current setting
Adjustable cool down time
Complete with regulator and 4 metre air cooled torch
Light Weight - only 9kg

Supply - 230v (16amp)
Output Current - 10amp to 40amp
Cutting Voltage - 96v
Output @ 60% Duty Cycle - 40amp
Max. Cutting Capacity - (Mild Steel) 10mm Severs 12mm
Output Power Settings Infinitely Variable
Compressed Air Pressure - 4.5bar
Average Air Consumption - 150 l/min
Insulation Class - F
Protection - IP21S
Net Weight - 9kg
Packaged Dimensions (HxWxL) - 475 x 220 x 520mm
Inverter Plasma is one of the ideal technologies for very fast, highly accurate and consistently clean cutting of all conductive materials such as steel, stainless, copper, bronze and aluminium. From our patented range, the Plasma 45 is a reliable, lightweight Plasma, but with superb duty cycle. Ideal for a variety of cutting applications





Price:515.98 (619.18 Including VAT at 20%)


Quantity:


Plasma 120 Plasma Cutter 6987 Plasma 120 Plasma Cutter 6987 Ref: 6987.
Plasma 120 Plasma Cutter 6987
Fast, clean and precise cuts reliably on mild and stainless steels, aluminium, brass and copper.
120 amps of cutting power - Capable of cutting up to 30mm mild steel.3 power settings - Provides optimal cutting power from 50 amps preventing distortion on extremely thin materials.





Price:1,574.10 (1,888.92 Including VAT at 20%)


Quantity:


Plasma 50 Plasma Cutter 6970 Plasma 50 Plasma Cutter 6970 Ref: 6970.
Plasma 50 Plasma Cutter 6970
Plasma 50 features:50 amps of cutting power
Cutting up to 10 mm mild steel.Wheel mounted - Large sturdy rubber wheels enable tremendous mobility where 3ph electrics are available.Pressure gauge -to ensure correct operating air pressure.





Price:866.74 (1,040.09 Including VAT at 20%)


Quantity:


Plasma 30 Plasma Cutter 6940 Plasma 30 Plasma Cutter 6940 Ref: 6940..
Plasma 30 Plasma Cutter 6940
Plasma 30 features:30 amps of cutting power
Cutting up to 6mm mild steelWheel mounted - Large sturdy rubber wheels.230v, 30amp supply requirements enable mobility.Pressure gauge -to ensure correct operating air pressure.





Price:608.85 (730.62 Including VAT at 20%)


Quantity:


Plasma 25 Plasma Cutter 6910 Plasma 25 Plasma Cutter 6910 Ref: 6910..
These Plasma Cutting machines are easy to use, give a very fast, clean and precise cut and are ideal for cutting mild and stainless steel, aluminium,brass and copper.25 amps of cutting power.Capable of cutting up to 4mm mild steel.
Portable - Integrated handle
230v, 20 amp supply enables job portability





Price:650.26 (780.31 Including VAT at 20%)


Quantity:
