Magnetic Drills
>
Magnetic Drills

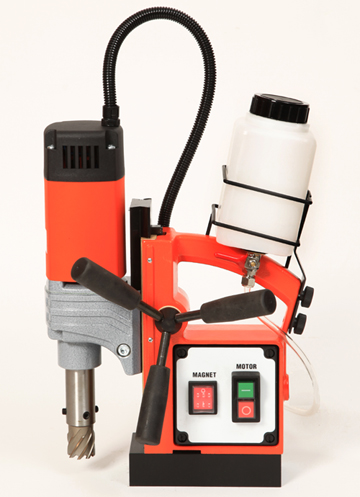

Metal Core Drilling Machine Piccolo 32/50 Weldon
Ref:
PICCOLO 32-50
Technical Data:
Core Drill:12-32 mm
Cutting Depth:50 mm
Twist Drill:1-13 mm DIN 338
Countersinking:10-40 mm
Capacity: 1100 Watts
1-speed gearbox: 450 rpm
Arbor: 19mm Weldon Direct Arbor
Coolant Supply: Integrated, automatic
Motor: Adjustable in height
Stroke: 129 mm,range 100-200 mm
Voltage: 110 & 230 V 50/60 Hz
Magnetic adhesion: 8000 N
Magnet Foot: 70 x 160mm
Type of Magnet: Rigid
Weight: 10.6 kg
Contents:
Metal Core Drilling Machine Piccolo 32/50 Weldon . Chuck . Adapter . Plastic transport case . Safety belt . Coolant unit, hose and regulating tap . Operation manual.
Price:
£429.55
(
£515.46
Including VAT at 20%)
Quantity:
VOLTAGE
240V
110V

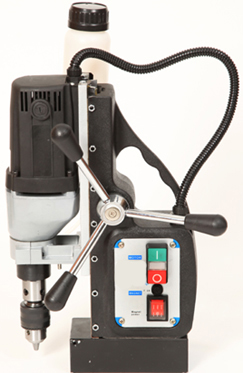

Metal Core Drilling machine Rotabest Max 35/50:
Ref:
max 35 50
Technical Data:
Core Drill:12-35 mm
Cutting Depth:25 or 50 mm
Twist Drill:1.5 13 mm DIN 338
Countersinking:10-40 mm
Capacity: 1200 Watts
1-speed gearbox: 595 rpm
Arbor: 19mm Weldon Direct Arbor
Coolant Supply: Integrated, automatic
Motor: Adjustable in height
Stroke: 190 mm,range 115 - 295mm
Voltage: 110 & 230 V 50/60 Hz
Magnetic adhesion: 13,000 N
Magnet Foot: 80 x 160 x 50mm
Type of Magnet: Rigid
Weight: 13.5 kg
Contents:
Metal Core Drilling machine Rotabest® Max 35/50:
Transport Case: Safety Belt: Allen Key: Drill chuck with
adapter: Operation Manual
Price:
£345.00
(
£414.00
Including VAT at 20%)
Quantity:
VOLTAGE
240V
110V

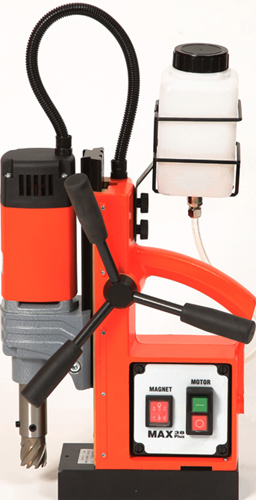

Metal Core Drilling Machine Max 38 Plus
Ref:
MAX 38 Plus
Technical Data:
Core Cutter:38 mm
Cutting Depth:50 mm
Twist Drill:10mm
Capacity: 1100 Watts
1-speed gearbox: 400 rpm
Arbor: 19mm Weldon Direct Arbor
Coolant Supply: Integrated, automatic
Voltage: 110 & 230 V 50/60 Hz
Magnetic adhesion: 12000 N
Magnet Foot: 95 x 200 mm
Weight: 15.2 kg
Contents:
Metal Core Drilling Machine Max 38 Plus.Transport case. Safety belt Coolant unit . Allen Keys . Operation manual .
Price:
£412.50
(
£495.00
Including VAT at 20%)
Quantity:
VOLTAGE
240V
110V

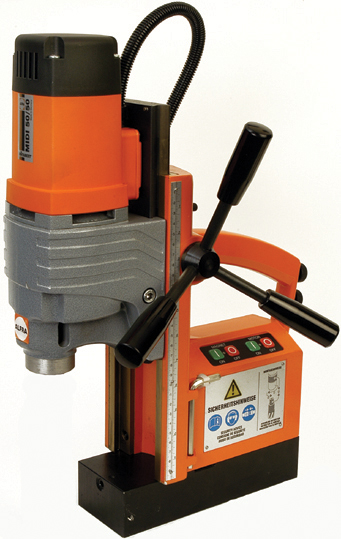

Metal Core Drilling Machine Midi 50/50
Ref:
Midi 50/50
Technical Data:
Core Drill:12-50 mm
Cutting Depth:50 mm
Twist Drill:1-23 mm DIN 338
Countersinking:10-50 mm
Capacity: 1200 Watts
2-speed gearbox: 250/450 rpm
Arbor: AMK2 MT
Coolant Supply: Integrated, automatic
Motor: Adjustable in height
Stroke: 170 mm,range 160-250 mm
Voltage: 110 & 230 V 50/60 Hz
Magnetic adhesion: 16000 N
Magnet Foot: 80 x 230mm
Type of Magnet: Rigid
Weight: 16 kg
Contents:
Metal Core Drilling Machine Midi 50/50 . Plastic transport case . Safety belt . Coolant unit , hose and regulating tap and guard . Tool Holder 18003 . Operation Manual.
Price:
£892.50
(
£1,071.00
Including VAT at 20%)
Quantity:
VOLTAGE
240V
110V

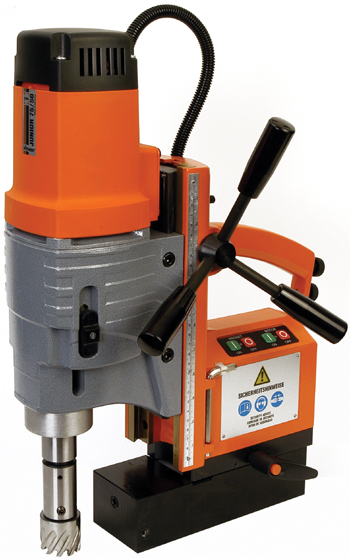

Metal Core Drilling Machine Junior 75/50
Ref:
Junior 75/50
Technical Data:
Core Drill:12-75 mm
Cutting Depth:50 mm
Twist Drill:1-32 mm DIN 338
Countersinking:10-50 mm
Capacity: 1800 Watts
4-speed gearbox: 110/175/245/385 rpm
Arbor: MT3
Coolant Supply: Integrated, automatic
Motor: Adjustable in height
Stroke: 190 mm,range 226-286 mm
Voltage: 110 V 50/60 Hz
Magnetic adhesion: 20000 N
Magnet Foot: 80 x 230mm
Type of Magnet: 30° adjustable to left/right 10mm back and forth
Weight: 22 kg
Contents:
Metal Core Drilling Machine Junior 75/50 . Plastic transport case . Safety belt . Coolant unit, hose and regulating tap . Tool Holder . Operation manual.
Price:
£1,042.50
(
£1,251.00
Including VAT at 20%)
Quantity:
VOLTAGE
110V

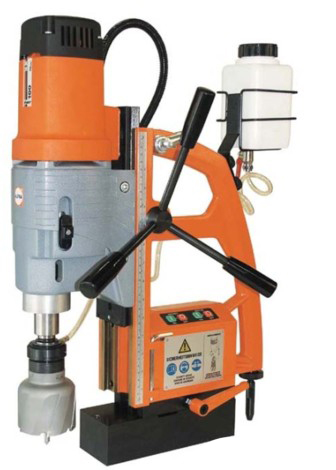

Metal Core Drilling Machine Rotabest 100
Ref:
100ALFRA
Technical Data:
Core Drill:Ø 12-100 mm
Cutting Depth:50 mm
Twist Drill:Ø 3.0-16.0 mm with drill chuck
Countersinking:Ø 32.0 with Morse Taper
Input: 1800 Watts
4-speed gearbox: 400 rpm
Tool Holder: MT3
Coolant Supply: Integrated, automatic
Motor: Adjustable in height
Stroke: 245 mm,range 295-400 mm
Voltage: 110 or 230 V 50/60 Hz
Magnetic adhesion:20000 N
Magnet Foot: 80 x 230mm 30° adj left/right, 10 mm back/forwards
Type of Magnet: Rigid
Weight: 28 kg
Contents:
Metal Core Drilling Machine Rotabest 100 . Chip Remover . Transport case. Safety belt . Coolant unit .
Price:
£1,118.65
(
£1,342.38
Including VAT at 20%)
Quantity:
VOLTAGE
240V
110V

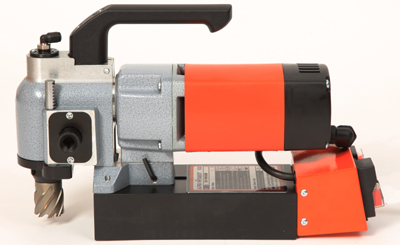

Angular Drilling Machine Rotabest V 32
Ref:
V32
Technical Data:
Core Drills: 12 - 32 mm Ø
Cutting Depth: 25 mm
Countersinking: 10 - 32 mm
Input: 900 W
1-speed gearbox: 450 rpm
Tool Holder: 19 mm Weldon
Cooling internal, automatically through
the spindle
Voltage: 230 V/110 V (upon request)
Magnet Foot: 95 x 200 mm (rigid)
Magnet adhesion: 16000 N
Height: 227/185 mm
Power cord: 3,0 m
Weight: 12,5 kg
Contents:
Angular Drilling Machine Rotabest V 32 . Coolant unit with hose and nipple . Transport case. Safety belt . Allen key for Weldon arbor . HSS Co Cutter Ø 18 mm, cutting depth 25 mm . Ejector pin 6,35 x 70 mm . Operation Manual
Price:
£862.55
(
£1,035.06
Including VAT at 20%)
Quantity:
VOLTAGE
110V
MAGPRO 35 KOMPAKT only available in 240volt
Ref:
MP35K
MAGPRO 35 KOMPAKT only available in 240volt
Price:
£798.00
(
£957.60
Including VAT at 20%)
Quantity:

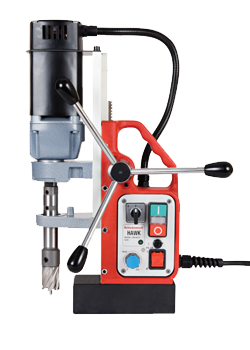

HAWK ROTABROACH MAGNETIC DRILL
Ref:
HAWK
Features
# Reversible arbor for tapping
# Safety relay circuit
# Variable speed control
# Dual coil high density magent
# Includes M10, M12, M14 & M16 tap holders (DIN376)
# Includes 13mm drill chuck
# Includes safety glasses, ear plugs and tapping compound
# Includes tap-holders
# Also available with an automatic lubrication set (can also be fitted later on)
Hawk Specifications
Max. Ø Hole Cutter 32 mm
Max. Ø Spiral Drill 13 mm
Tapping Ø M5-M16
Length 240 mm
Width 110 mm
Height 370 mm
Stroke 150 mm
Weight 11 kg
Magnet 160 X 80 mm
Magnetic Force 1500 kg
Motor Power 1050 W
Total Power 1160 W
Speed (I) 100-450 min-I
Spindle 19.05 mm (3/4")
Motor Specification 110 and 230 Volt
Price:
£799.65
(
£959.58
Including VAT at 20%)
Quantity:
VOLTAGE
240 V
110 V
SCORPION ROTABROACH MAGNETIC DRILL 65MM DIA X 50MM DEEP
Ref:
SCORPION
This sturdy multi-functional machine is adaptable for twist drills, tapping attachments, 3 Morse Taper and broaching cutters. This makes this machine perfect for almost any application.
220/260/350/420 RPM. 65MM DIA X 50MM DEEP. 3 MORSE TAPER MACHINE.25KG WEIGHT
Price:
£1,595.35
(
£1,914.42
Including VAT at 20%)
Quantity:
Voltage
110v
230v
COBRA ROTABROACH MAGNETIC DRILL 65MM DIA X 52MM DEEP
Ref:
The Cobra
* Drill on site or in a workshop
* Cuts holes up to 65mm diameter x 50mm deep
* 1400 watt motor
* Feed capstan may be reversed for easy positioning in tight areas
* Controls mounted at the rear for better access
* 1200 kgs magnetic adhesion
* Variable speed - the right speed for the right diameter
* Automatic cooland bottle
* Supplied with secure carrying case
Cobra Specifications
Model number CM/200/1A - CM/200/3A
Motor specification 110v full load 14amps 1400w
230w full load 6.0amps 1400w
No load rpm 160 to 640 rpm
Max hole cutting capacity 65mm dia x 50mm deep
Overall dimensions Height 570mm max
Width 190mm Exc. bottle
Length 300mm
Net weight 19.8 kgs
Spindle bore 19.05 (3/4")
Magnetic adhesion 1200 kgs
Safety features Clutch and electronic overload
Price:
£799.55
(
£959.46
Including VAT at 20%)
Quantity:
Voltage
110v
230v
ROTABROACH PANTHER MAG DRILL 40MM DIA X 52MM DEEP
Ref:
PANTHER MAG DRILL
* Lightweight - ideal for use on site on in a workshop
* Cuts holes up to 40mm diameter x 50mm deep
* 1100 watt motor
* Feed capstan may be reversed for easy positioning in tight areas
* Variable speed - the right speed for the right diameter
* Automatic coolant bottle
* Supplied with secure carrying case
Panther Specifications
Model number CM/125/IA - CM/125/3A
Motor specification 110v full load 11amps 1100w
230w full load 5amps 1100w
No load rpm 350 to 600 rpm
Max hole cutting capacity 40mm dia x 50mm deep
Overall dimensions Height 510mm max
Width 180mm Exc. bottle
Length 265mm
Net weight 14.6 kgs
Spindle bore 19.05 (3/4")
Magnetic adhesion 750 kgs
Safety features Clutch and electronic overload
Price:
£529.95
(
£635.94
Including VAT at 20%)
Quantity:
Voltage
110v
230v

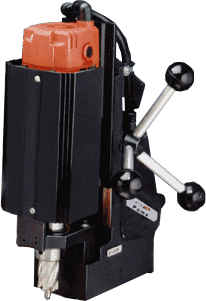

PUMA ROTABROACH MAGNETIC DRILL 30MM DIA X 25MM DEEP
Ref:
PUMA
* Lightweight - ideal for use on site on in a workshop
* Cuts holes up to 30mm diameter x 25mm deep
* 800 watt motor
* Feed capstan may be reversed for easy positioning in tight areas
* Controls mounted at the rear for better access
* 750kgs magnetic adhesion
* Complete with 1/2" drill chuck
* Supplied with secure carrying case
Puma Specifications
Model number CM/300/IA - CM/300/3A
Motor specification 110v full load 7.8amps 800w
230w full load 4amps 800w
No load rpm 600rpm
Max hole cutting capacity 30mm dia x 25mm deep
Overall dimensions Height 420mm max
Width 170mm
Length 250mm
Net weight 12.2 kgs
Spindle bore 19.05 (3/4")
Magnetic adhesion 750 kgs
Safety features Electronic overload
Price:
£345.55
(
£414.66
Including VAT at 20%)
Quantity:
Voltage
110v
230v

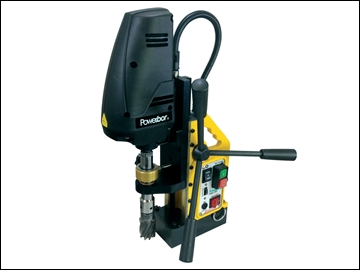

MAGNETIC DRILL PB32
Ref:
PB32
The POWERBOR® PB32 has been ergonomically designed to provide an electromagnetic drilling machine that is totally user friendly.
Fitted with the reliable and proven HITACHI D13 power unit
Free 13mm drill chuck*
A complete coolant system is available
All Powerbor® standard features are backed by a full range of replacement spares
12 months comprehensive warranty as standard
* To fit drill chuck (13mm with 1/2 x 20) remove arbor (RH thread) and arbor support bracket.
Price:
£703.50
(
£844.20
Including VAT at 20%)
Quantity:
VOLTAGE
110VOLT
240VOLT

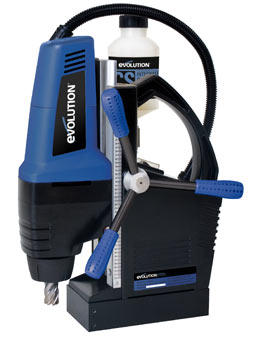

EVOLUTION EVO42 Magnetic Drill IN STOCK
Ref:
EVO42
Technical Specifications
Motor (230v or 110v ~ 50Hz): 1200W
Maximum Cutter Diameter: 42mm
Maximum Cutting Depth: 50mm
Speed (No Load): 450RPM SINGLE SPEED
Recommended Maximum Duty Cycle: 30mins
Sound Pressure Level (Under Load): 90dB(A)
Weight: 10.9kg
Maximum Dimensions Rack Fully Raised (HxWxL): 580mm x 320mm x 180mm
Minimum Dimensions Rack Fully Lowered (HxWxL): 340mm x 320mm x 180mm
Magnet Dimensions (HxWxL): 40mm x 90mm x 180mm
Magnet Adhesion: 1500Kg f
Cutter Retainer Internal Diameter: 19mm Weldon Shank
http://www.evolutionpowertools.co.uk/downloads/evo42.mp4 ----------- please view this Video
Price:
£299.90
(
£359.88
Including VAT at 20%)
Quantity:
VOLTAGE
240V
110V
Magnetic Drill PB70/2
Ref:
PB 70/2
Magnetic Drill PB70/2 70mm Capacity.Constant torque / Electro torque control.3 Morse Taper.Soft start motor.Infinitely variable speed.Forward and reverse facility - ideal for tapping.Thermal overload protection.Mechanical clutch.Fitted with the tried and tested Eibenstock motor unit.All Powerbor standard features and backed by a full range of replacement spares Cutters capacity:12mm-79mm - Drilling capacity:32mm
Price:
£898.42
(
£1,078.10
Including VAT at 20%)
Quantity:
Voltage
110v
230v

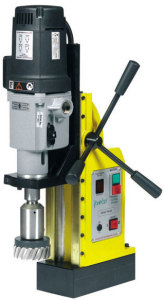

The POWERBOR® PB100E
Ref:
PB100E
The POWERBOR® PB100E is a more powerful machine with total power of 1750W. The low spindle speed of 110rpm can be very useful on large cutter/difficult applications.
HEIGHT 480mm
WIDTH 110mm
DEPTH 320mm
TRAVEL 280mm
WEIGHT 25kgs
MAGNET TO SPINDLE 75mm
HEIGHT UNDER ARBOR 210mm
MAGNET AREA 220 x 110mm
Price:
£1,092.20
(
£1,310.64
Including VAT at 20%)
Quantity:
CHOOSE VOLTAGE
230V
110V

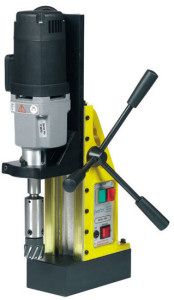

The POWERBOR® PB45
Ref:
PB45
The cutting capacity to weight ratio of the POWERBOR® PB45 complements the PB32 but adds more cutting power. The relatively light overall weight of the PB45 disguises the cutting and drilling power normally associated with much heavier machines.
Fitted with the tried and tested Eibenstock 2 speed motor unit
A complete coolant system is available as an option
All Powerbor® standard features are backed by a full range of replacement spares 12 months comprehensive warranty as standard
HEIGHT 370mm
WIDTH 115mm
DEPTH 280mm
TRAVEL 200mm
WEIGHT 20kgs
MAGNET TO SPINDLE 36mm
HEIGHT UNDER ARBOR 140mm
MAGNET AREA 200 x 100mm
Price:
£865.45
(
£1,038.54
Including VAT at 20%)
Quantity:
CHOOSE VOLTAGE
230V
110V
The POWERBOR® PB70
Ref:
PB70
The POWERBOR® PB70 has been carefully designed to guarantee enhanced power and versatility. A proven, powerful performer and still portable enough to be used on-site or in the workshop, the PB70 provides the perfect solution to even the most difficult of drilling applications. It incorporates a reversible variable speed motor as standard, allowing it to be readily used for tapping applications.
Infinitely variable speed
Forward and reverse facility
Fitted with a tried and tested Eibenstock motor unit
Constant torque
Electro-torque control
Soft start motor
Thermal overload protection
Mechanical clutch
Available option includes a complete coolant system
All Powerbor® standard features are backed by a full range of replacement spares 12 months comprehensive warranty as standard
HEIGHT 445mm
WIDTH 110mm
DEPTH 330mm
TRAVEL 200mm
WEIGHT 22kgs
MAGNET TO SPINDLE 48mm
HEIGHT UNDER ARBOR 175mm
MAGNET AREA 200 x 100mm
Price:
£1,149.55
(
£1,379.46
Including VAT at 20%)
Quantity:
CHOOSE VOLTAGE
230V
110V
The PB32 Combi
Ref:
PB32COMBI
The PB32 Combi has the same excellent power to weight ratio as the PB32. In addition it has forward, reverse and variable speed as standard providing a choice of tapping, cutting and drilling capability.
Forward and reverse facility
Fitted with the reliable and proven HITACHI D13 power unit
Free 13mm drill chuck*
A complete coolant system is available
All Powerbor® standard features are backed by a full range of replacement spares 12 months comprehensive warranty as standard
* To fit drill chuck (13mm with 1/2 x 20) remove arbor (RH thread) and arbor support bracket.
HEIGHT 300mm
WIDTH 90mm
DEPTH 240mm
TRAVEL 165mm
WEIGHT 12.5kgs
MAGNET TO SPINDLE 46mm
HEIGHT UNDER ARBOR 160mm
MAGNET AREA 160mm x 85mm
Price:
£753.75
(
£904.50
Including VAT at 20%)
Quantity:
CHOOSE VOLTAGE
230V
110V

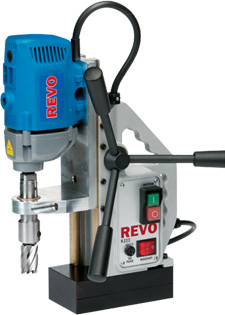

Revolution Mag Base Drill Machine
Ref:
R322
The REVO R322 introduces an improved performance, robust, cost effective and powerful magnetic drilling system.
With a powerful and reliable motor, 12-32mm cutter capacity, a new and improved durable arbor and an industry proven magnetic adhesion unit.
The REVO R322 is designed for easy application and optimum safety with a new easily accessible and simple to use control panel, improved lifting handles and in built security location for the safety strap.
It is a top performer in the workshop or on site and the perfect partner for TCT and HSS cutters.
* Easily portable, lightweight and easy to use, all at a really competitive price
* Cutting capacity 12mm to 32mm with cutters and twist drill capacity of 13mm
* Magnetic holding 1000kg
* Weight 12kg
* Quality UK construction and 12 month user confidence warranty
Standard features
* Proven and reliable magnet for maximum adhesion
* Dual carrying handles
* Reversible handle for use in awkward situations
* Corrosive resistant, tangle-free cable from stand to drill unit
* New and improved control panel for safe and easy use
* "No Volt Release" switch for improved safety handling
* A new rugged carry case that comes complete with cutting fluid, safety guard, safety strap, allen keys and drill chuck
* 12 month comprehensice warranty
SPECIFICATION
Height: 305mm (minimum)
460mm (maximum)
Width: 120mm
Depth: 275mm
Weight: 12kg
Motor input power: 850W
Spindle stroke: 155mm (travel)
Magnetic adhesion: 1000kg
Speed (load): 390rpm
Speed (no load): 690rpm
Cutter capacity: 12-32mm
Twist drill capacity: 13mm
Cutter fitting type: 3/4 Weldon
Voltage available: 110v/230v
Price:
£559.46
(
£671.35
Including VAT at 20%)
Quantity:
CHOOSE VOLTAGE
230V
110V
35mm Magnetic Drill
Ref:
ME3500
35mm Magnetic Drill
Specifically designed for onsite steel construction and fabrication tasks, the mds magdrill uses a pair of electro magnets to ensure maximum adhesion at virtually any angle to most steel and ferrous metal surfaces. A powerful motor ensures a good broaching capacity with automatic oil feed and a slow cutter rotation speed of 550rpm producing very clean and accurate holes.
Price:
£343.04
(
£411.65
Including VAT at 20%)
Quantity:
Voltage
110v
230v

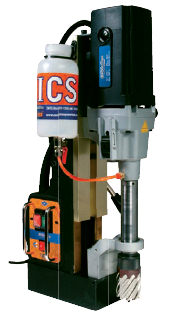

ME5000 MAGNETIC DRILL
Ref:
ME5000
The Amazing ME5000 magnetic drilling system.Cutting capacity 12mm (7/16") to 50mm (2"). Cutters available in 25mm (1") and 50mm (2") depths, twist drill capacity 13mm (1/2").
Price:
£424.66
(
£509.59
Including VAT at 20%)
Quantity:
OUT OF STOCK PRODUCT

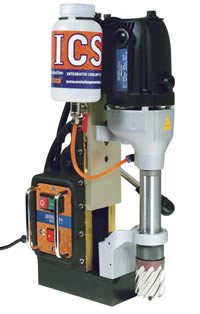

EVOLUTION ME5000/2 XTREME 50MM DIA X 75MM DEEP
Ref:
ME5000/2 EXTREME
Motor (230v or 115v 50/60 Hz) (Watts): 1800, Maximum Cutter Diameter (mm): 50
Maximum Cutting Depth (mm): 75, RPM No Load Speed 1 (min -1): 380
RPM No Load Speed 2 (min -1): 500, Recommended Maximum Duty Cycle (Minutes): 30
Sound Pressure Level (Under Load) (dB(A)): 104, Weight (Kg): 21.8
Maximum Dimensions Rack Fully Raised (mm): H 611 W 290 D 310
Maximum Dimensions Rack Fully Lowered (mm): H 508 W 245 D 300
Magnet Dimensions (mm): H 93 W 65 D 199
Magnetic Adhesion (Kg f): 2000
Cutter Retainer Internal Diameter (mm): 19mm Weldon Shank
Price:
£517.28
(
£620.74
Including VAT at 20%)
Quantity:
Voltage
110v
230v
OUT OF STOCK PRODUCT
ME7500 EVOLUTION MAGNETIC DRILL- 3 MORSE TAPER MACHINE 115volt
Ref:
Magnatech ME7500
Motor (115v 50/60 Hz) (Watts): 1800, Maximum Cutter Diameter (mm): 75 Maximum Cutting Depth (mm): 50, Maximum Drill Diameter (Morse Taper No.3) (mm): 32 Maximum Tap Diameter (mm): 24, RPM No Load Speed 1 (min -1): 210, RPM No Load Speed 2 (min -1): 270 RPM No Load Speed 3 (min -1): 410, RPM No Load Speed 4 (min -1): 530, Recommended Maximum Duty Cycle (Minutes): 30, Sound Pressure Level (Under Load) (dB(A)): 104, Weight (Kg): 24.6, Maximum Dimensions Rack Fully Raised (mm): H 618 W 290 D 330, Maximum Dimensions Rack Fully Lowered (mm): H 526 W 240 D 320, Magnet Dimensions (mm): H 100 W 65 D 199, Magnetic Adhesion (Kg f): 2250 Cutter Retainer Internal Diameter (mm): 19mm Weldon Shank,Standard Equipment Supplied With Unit: 1 Oil Tank, 1 Quick Release Oil Pipe,1 Guard, 1 Hex key 2.5mm, 1 Wrench 8mm, 3 Handles, 2 Butterfly Screws, 2
Price:
£680.62
(
£816.74
Including VAT at 20%)
Quantity:
Voltage
110v
ROTABROACH ADDER CM700 MAGNETIC DRILL
Ref:
CM700
Lightweight and compact design - only 10Kgs
Rotabroach's smallest ever machine
- only 210mm high!
Perfect for those tight areas where space is restricted
Quick release arbor for rapid cutter attachment
Quick release capstan arm
Comes complete with carry case and accessories
Motor Specification 110V full load 10.8 amps 1100W
230V full load 5.4 amps 1100W
No Load rpm 650 rpm
Maximum hole cutting capacity 35mm dia x 30mm deep
Overall dimensions Height 210mm
Width 100mm
Length 285mm
Net weight 10kgs
Spindle bore 19.05mm (3/4")
Magnetic adhesion 1500kgs
Safety features Electronic overload
Price:
£695.25
(
£834.30
Including VAT at 20%)
Quantity:
VOLTAGE
240V
110V
Tools UK
>
Power Tools & Power Tools Spares
>
Power Tools Industrial
>
Magnetic Drills
>
Magnetic Drills
New Items To Come!
Engineering Tools Is Our Business
